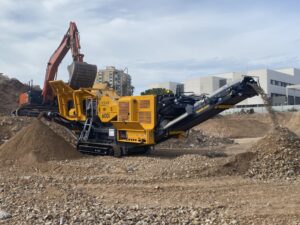

The Tesab 600i is a tracked mobile jaw crusher designed for the primary crushing of a wide range of materials. Fitted with a 1016 x 610 mm single-toggle jaw, a vibrating feeder with integrated pre-screening and hydraulic setting adjustment, it combines high structural strength with compact transport dimensions.
Its open-chassis design, the generous clearance between the crushing chamber and the main conveyor, together with the hydraulically folding discharge conveyors, make maintenance easier and turn it into a suitable solution for quarrying, mining, aggregate production, civil works and recycling applications.
- 1016 x 610 mm single-toggle jaw crusher.
- 225 HP Caterpillar diesel engine.
- Vibrating feeder with integrated pre-screening.
- Hydraulic setting adjustment with double-wedge system.
- Reversible hydrostatic crusher drive.
- Hydraulically folding feed hopper for transport.
- 900 mm wide main discharge conveyor with hydraulic folding.
- 650 mm wide side conveyor for fines removal.
- Bypass system for fine material separation.
- Open-frame chassis on tracks for easier maintenance.
- Generous clearance between crusher discharge and main conveyor feed.
- Fast set-up and transport-optimised design.
